This service is available for jobs in which we provide the material and for an additional fee.

Our Detailing Service provides you with installation drawings for your projects. These drawings typically include stud installation drawings, bundle placement plans and cut lists. We also provide Metal Deck Accessories (Pour Stops, End Closure, Side Closure, Ridge Cap, Flat Plate, etc.) which are also shown on the drawings, based on the project requirements.

Our Detailed Installation Drawings Can Enhance The Quality and Efficiency of Your Project; Saving You Time and Money!

Detailing Benefits:

  • Increased Job Site Efficiency
  • Less Job Site Waste
  • Less Field Cutting
  • Ownership of the Drawings

The entire staff at Cordeck is committed to the success of our clients which is why we are with you from project conception to completion!

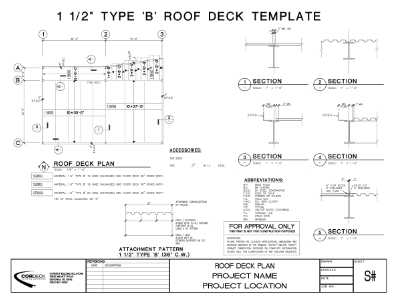

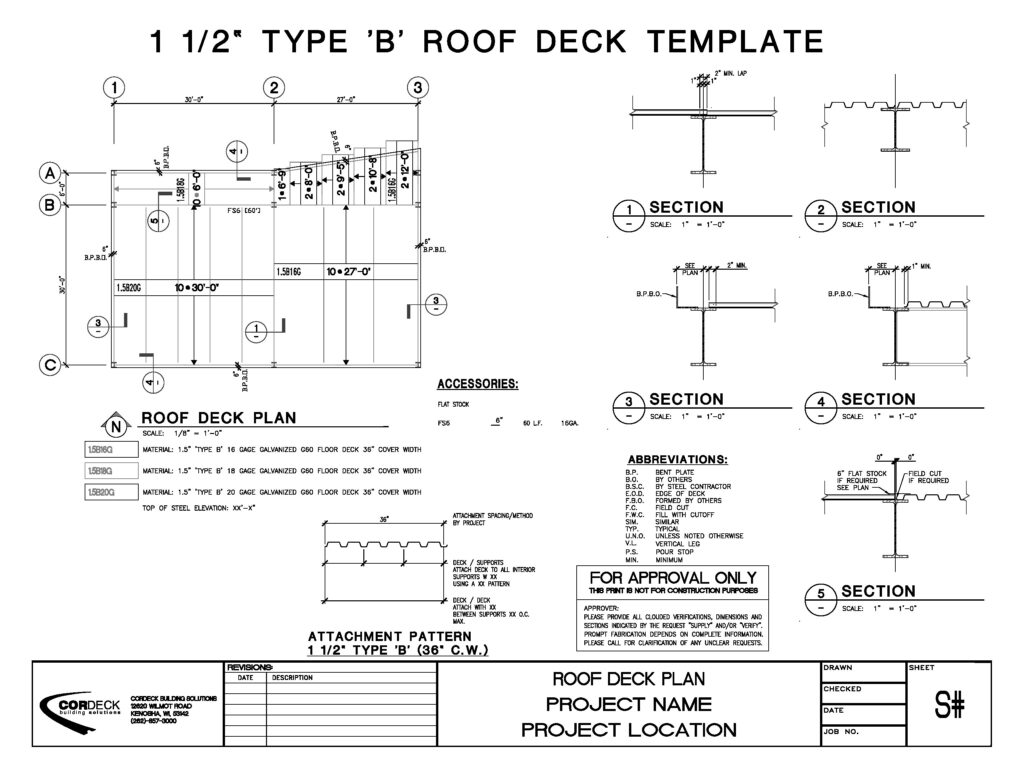

Roof Deck Drawing Example

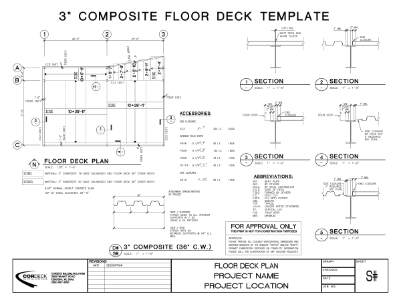

Floor Deck Drawing Example
