CELLULAR ROOF DECK

Cordeck Cellular Roof Deck is traditional corrugated roof deck with flat sheet steel welded to the underside to create enclosed cellular raceways, that are often utilized to house sound absorbing material. With the addition of the flat bottom plate, increased spanning and loading capabilities are achieved.

Cordeck Cellular Roof Deck products serve as the structural substrate in roof construction. Installed directly over structural steel, and provides a solid work surface for the installation of insulation, weatherproofing, and roofing materials.

These products are also used to build mezzanines and canopies, and the attractive flat underside of Cordeck Cellular Roof Deck can be left exposed for open ceiling design. For post-painting purposes, a floating clip insulation option is available.

Five popular types with varying numbers and sizes of cells in a variety of gauges are available. All types are also available complete with acoustical perforations on the flat underside and factory installed with an appropriate sound absorption material (batt or closed cell) for noise attenuation – a perfect choice for gymnasiums, auditoriums, and natatoriums.

If you require assistance in selecting the roof deck products most suitable for your project, please contact a Cordeck DEXPERT® today for free expert consultation.

REQUEST A QUOTE

Cordeck steel roof deck products serve as the structural substrate in roof construction. Installed directly over structural steel, and provides a solid work surface for the installation of insulation, weatherproofing, and roofing materials.

These products are also used to build mezzanines and canopies, and the attractive corrugated underside of Cordeck Roof Deck can be left exposed for open ceiling design.

Four popular types including B deck, F deck, N deck, and A deck in a variety of gauges are available. N deck and B deck are also available complete with acoustical perforations and an appropriate sound absorption material for noise attenuation – a perfect choice for gymnasiums, auditoriums, and natatoriums.

If you require assistance in selecting the roof deck products most suitable for your project, please contact a Cordeck DEXPERT® today for free expert consultation.

REQUEST A QUOTE

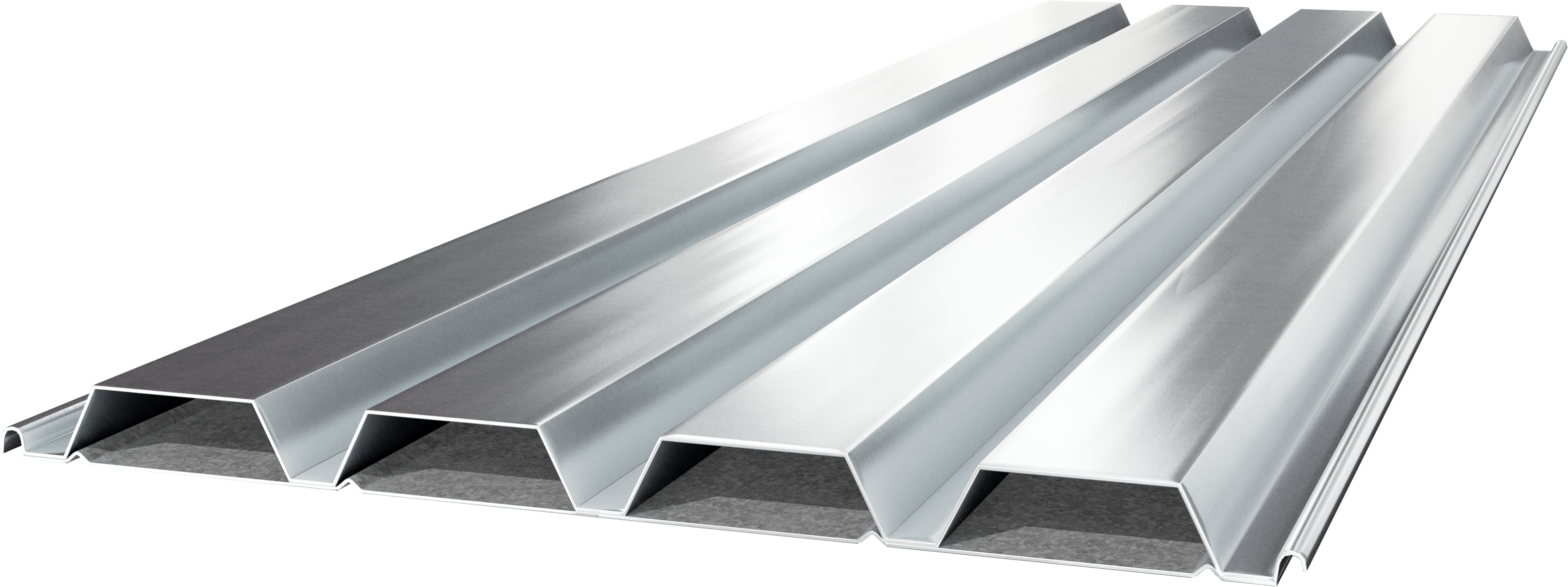

1.5″ Cellular Roof Deck

Available Widths: 24"

Available Finishes: Galvanized - G90, G90/Primed Bottom, Stainless Steel

Available Gauges: 20/20, 20/18, 18/20, 18/18, 18/16, 16/18, 16/16

LEARN MORE
DOWNLOAD DATA SHEET

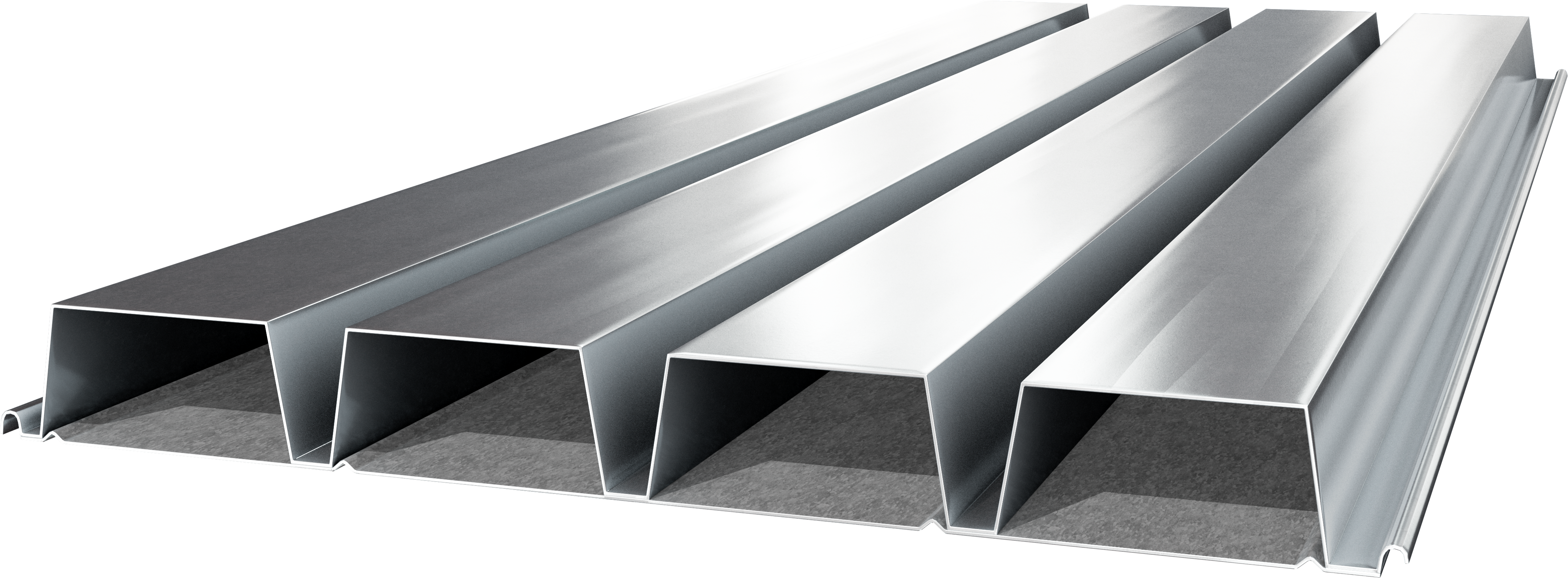

3.0″ Cellular Roof Deck

Available Widths: 24"

Available Finishes: Galvanized - G90, G90/Primed Bottom, Other Finishes Available Upon Request

Available Gauges: 20/20, 20/18, 18/20, 18/18, 18/16, 16/18, 16/16

LEARN MORE
DOWNLOAD DATA SHEET

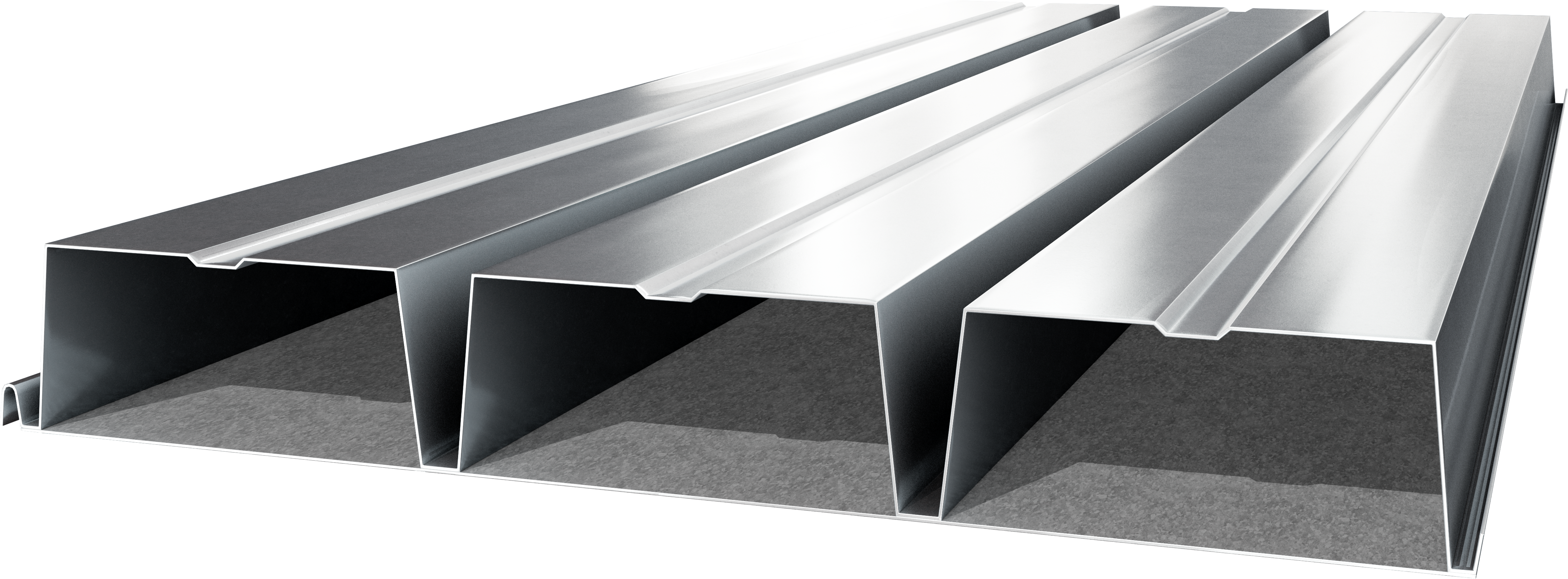

4.5″ Deep Cellular Roof Deck

Available Widths: 24"

Available Finishes: Galvanized - G90, G90/Primed Bottom, Other Finishes Available Upon Request

Available Gauges: 20/20, 20/18, 18/20, 18/18, 18/16, 16/18, 16/16, Other available upon request

LEARN MORE
DOWNLOAD DATA SHEET

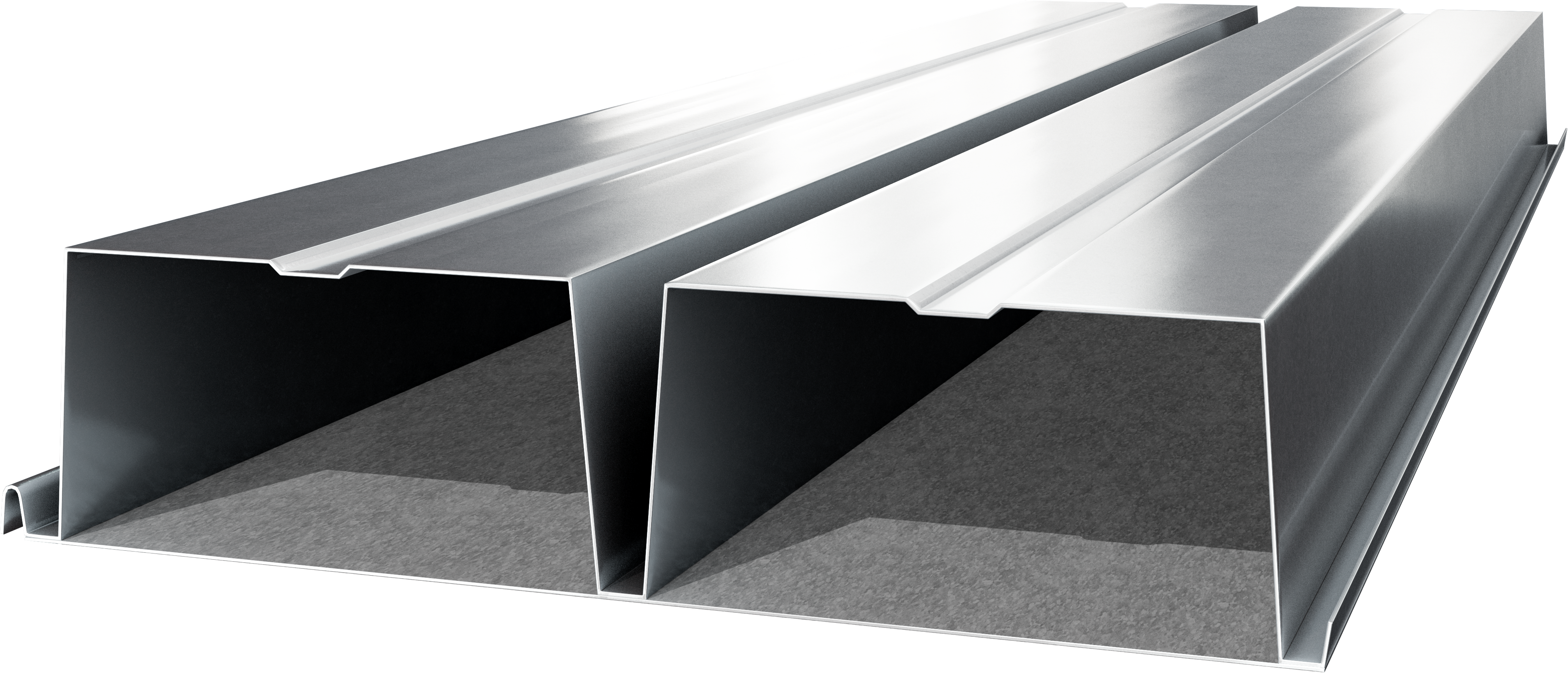

6.0″ Deep Cellular Roof Deck

Available Widths: 24"

Available Finishes: Galvanized - G90, G90/Primed Bottom, Other Finishes Available Upon Request

Available Gauges: 20/20, 20/18, 18/20, 18/18, 18/16, 16/18, 16/16

LEARN MORE
DOWNLOAD DATA SHEET

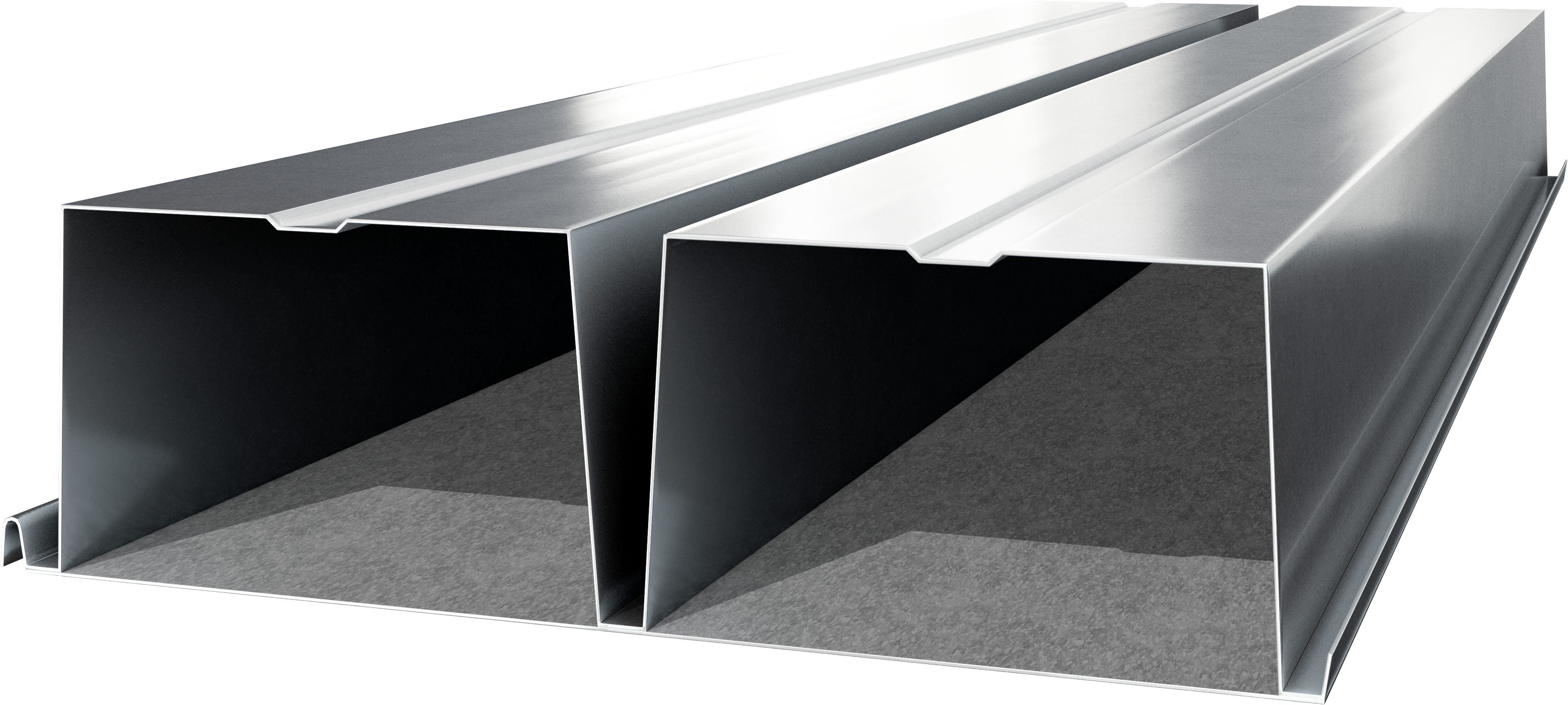

7.5″ Deep Cellular Roof Deck

Available Widths: 24"

Available Finishes: Galvanized - G90, G90/Primed Bottom, Other Finishes Available Upon Request

Available Gauges: 20/20, 20/18, 18/20, 18/18, 18/16, 16/18, 16/16, Other available upon request

LEARN MORE
DOWNLOAD DATA SHEET
