1.5″ Cellular Composite Floor Deck

A composite floor deck with a flat steel plate welded to the underside. It bonds with the slab to form a composite floor while leaving a clean, finished ceiling and built-in raceways below. Available in five gauge combinations, galvanized, stainless, or prime-able finishes — and manufactured to any length you need.
Cordeck Metal Roof Deck Products
Cordeck Metal Roof Deck Specs
At-a-glance specs

Standard Cover Width

24"

Available Gauges

20/20, 18/20, 18/18, 16/18, 16/16

Available Finishes

Galvanized-G90, Stainless Steel, Galvanized-G90-Prime-able

Compliance

SDI · UL · FM Approved

Cordeck's 1.5″ Cellular Composite Floor Deck is a composite floor deck with a flat steel sheet welded to its underside. Once the concrete cures, deck and slab work as one composite floor; the welded plate closes the flutes into cells that add span and load over standard composite deck, conceal utilities, and present a flat, paint-ready ceiling. The underside can be perforated and packed with sound-absorbing material for gyms, auditoriums, and natatoriums. Manufactured by Cordeck to SDI standards, with project-management support, AutoCAD drawings, and cut-to-length sizing available.

Quick Quote

Reply in under 1 business hr

Not sure exactly what you need? Send the basics and our team follows up fast. Know exactly what you need? Use our detailed quote form.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Gauge
(optional)
(optional)
sheets, optional
optional

Prefer to talk it through? Give us a call 877.857.6400

Same-day pickup

From any of our 8 locations

Fast delivery

Coast to coast, all 50 states

Excellent service

Family-business attention to every order

Need it tomorrow? Call 877.857.6400

Applications & use cases

Where 1.5″ Cellular Composite Floor Deck Shows Up

A composite structural floor for multi-story buildings that also want a clean, finished ceiling below — multi-story office buildings, hospital floors carrying heavy equipment, and university library floors with long spans between columns. With a perforated, sound-absorbing underside, it also serves performing-arts buildings and offices where the deck is the finished ceiling.

Primary Applications

Creates a steel/concrete composite floor with a flat steel bottom plate welded to the underside

Provides increased spanning and loading vs. standard composite floor deck

Ideal for long spans and heavy loads where a flat ceiling underside is desired

Common Examples
  • Multi-story office building floors where a clean ceiling finish is desired below
  • Hospital floors with heavy equipment and flat ceiling requirements
  • University library floors with long spans between columns
Secondary Applications

Flat underside provides clean, finished ceiling appearance

Available with acoustical perforations and factory-installed sound absorption material (batt or closed cell) for noise attenuation in gymnasiums, auditoriums, and natatoriums

Common Examples
  • School gymnasium floor/ceiling assembly with acoustical treatment on the underside
  • Performing arts building with sound-controlled floor/ceiling assembly
  • Office building with exposed painted cellular deck as the finished ceiling
Engineering data

Load Tables & Section Properties

SDI-compliant uniform load values and section properties. Download the full data sheet or review the tables below.

Uniform Load Table

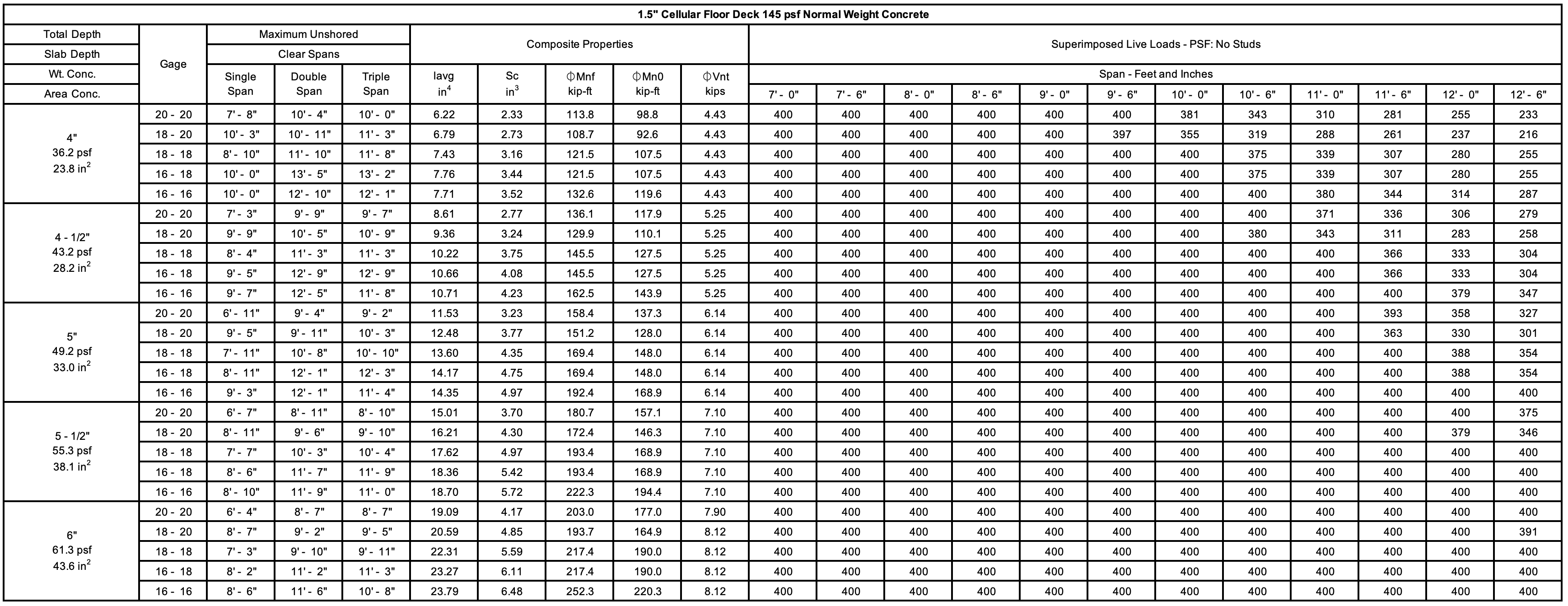

Cordeck 1.5 Cellular Comp Floor Deck Uniform Load Table

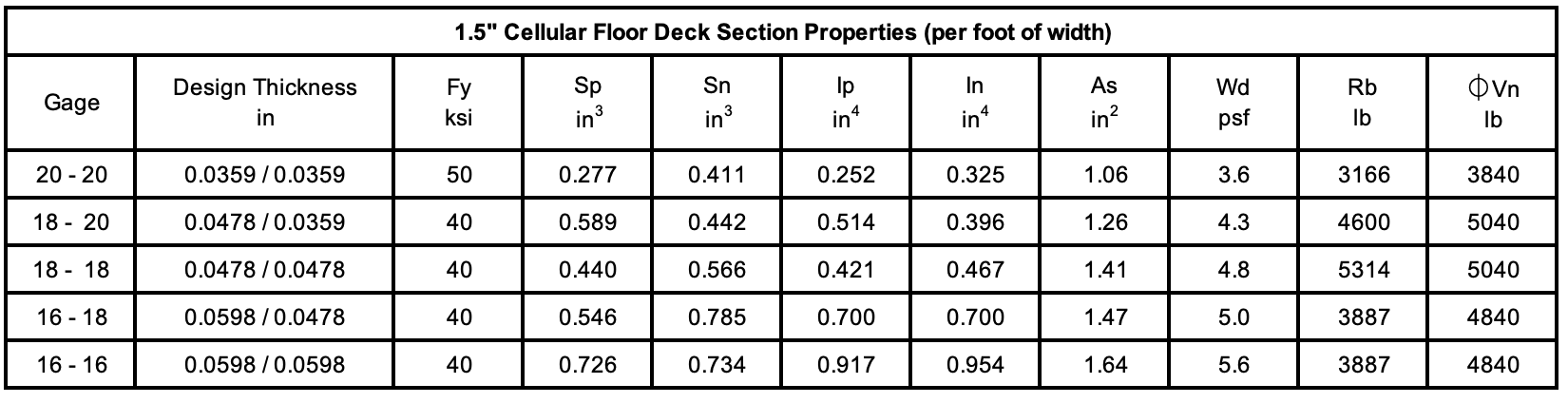

Section Properties
