3.0″ Cellular Composite Floor Deck

Our deepest cellular composite floor deck, with a flat welded bottom plate. It delivers the maximum span and load in the line, plus a finished ceiling and built-in raceways. Available in five gauge combinations, galvanized or prime-able finishes — and manufactured to any length you need.
Cordeck Metal Roof Deck Products
Cordeck Metal Roof Deck Specs

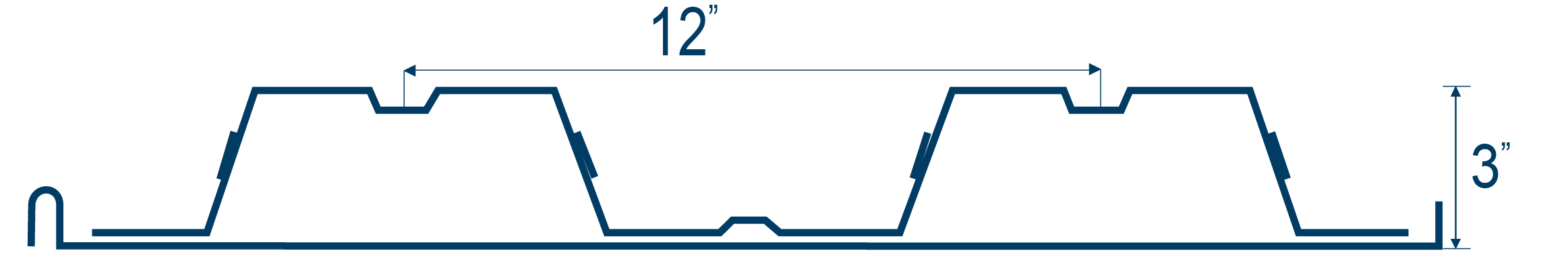

At-a-glance specs

Standard Cover Width

24"

Available Gauges

20/20, 18/20, 18/18, 16/18, 16/16

Available Finishes

Galvanized-G90, Galvanized-G90-Prime-able

Compliance

SDI · UL · FM Approved

Cordeck's 3.0″ Cellular Composite Floor Deck is the deepest profile in the line: a composite floor deck with a flat steel sheet welded beneath it. It bonds with the concrete slab to form a composite floor while the welded plate creates deep enclosed cells — carrying the heaviest floor loads over the longest spans and finishing the ceiling below with built-in raceways for utilities. The underside can be perforated and packed with sound-absorbing material for large acoustic venues. Manufactured by Cordeck to SDI-compliant quality, with full engineering support — AutoCAD drawings, bundle placement plans, and cut-to-length sizing on request.

Quick Quote

Reply in under 1 business hr

Not sure exactly what you need? Send the basics and our team follows up fast. Know exactly what you need? Use our detailed quote form.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Gauge
(optional)
(optional)
sheets, optional
optional

Prefer to talk it through? Give us a call 877.857.6400

Same-day pickup

From any of our 8 locations

Fast delivery

Coast to coast, all 50 states

Excellent service

Family-business attention to every order

Need it tomorrow? Call 877.857.6400

Applications & use cases

Where 3.0″ Cellular Composite Floor Deck Shows Up

A composite floor for the longest spans and heaviest loads that still need a flat finished ceiling — large convention-center exhibit halls, heavy industrial mezzanine floors, and major hospital and research-facility floors. With acoustical perforations, it also fits major arenas, natatoriums, and convention-center ballrooms.

Primary Applications

Creates a steel/concrete composite floor with a flat steel bottom plate welded to the underside

Deepest 3.0" profile provides maximum spanning and loading capacity

Ideal for longest spans and heaviest loads where a flat ceiling underside is desired

Common Examples
  • Large convention center exhibit hall floors
  • Heavy industrial mezzanine floors with forklift and machinery loads
  • Major hospital or research facility floors with the widest column spacing and heaviest equipment
Secondary Applications

Flat underside provides clean, finished ceiling appearance

Available with acoustical perforations and factory-installed sound absorption material (batt or closed cell) for noise attenuation in gymnasiums, auditoriums, and natatoriums

Common Examples
  • Major arena seating bowl floor/ceiling with full acoustical treatment
  • Large-scale natatorium floor above with acoustical ceiling below
  • Convention center ballroom with exposed painted cellular deck ceiling
Engineering data

Load Tables & Section Properties

SDI-compliant uniform load values and section properties. Download the full data sheet or review the tables below.

Uniform Load Table

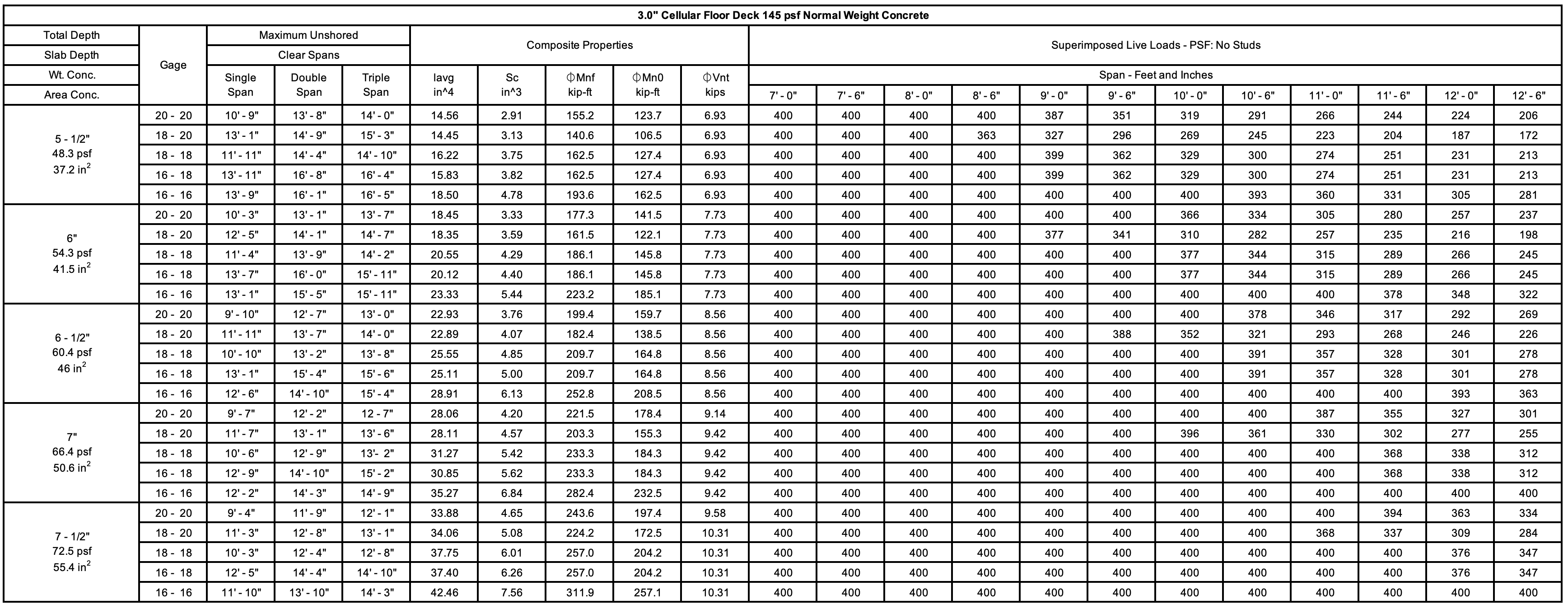

Cordeck 3.0 Cellular Comp Floor Deck Uniform Load Table

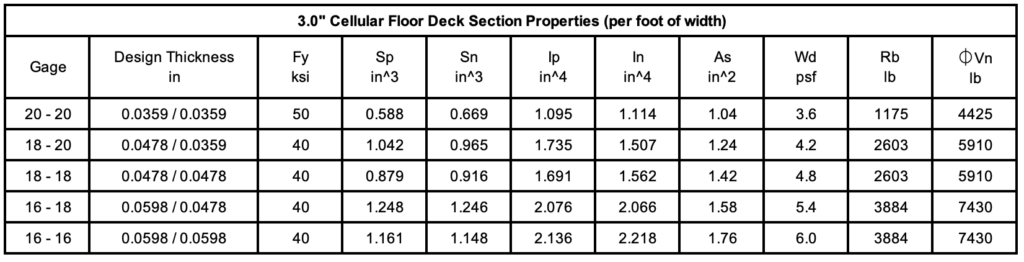

Section Properties
