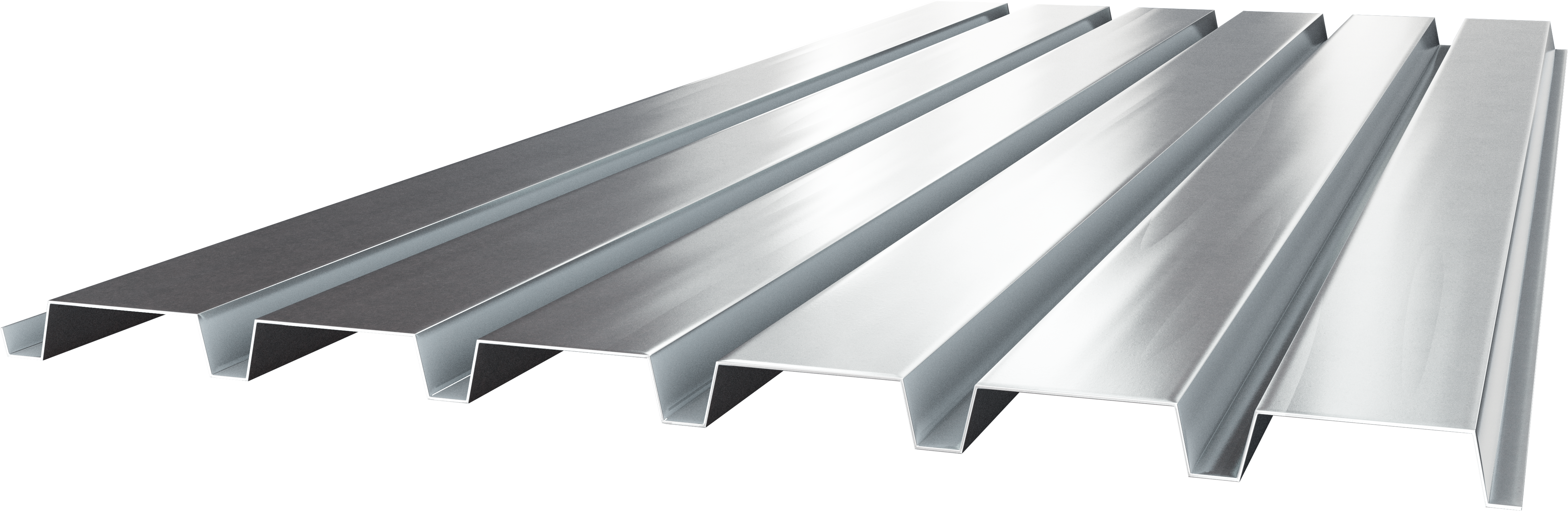

1.5″ F Intermediate Rib Roof Deck

The intermediate-rib profile, sized between narrow-rib A and wide-rib B. A dependable substrate for everyday commercial and industrial roofs. Available in three gauges, galvanized or prime-painted finishes — and manufactured to any length you need — with same-day or next-day pickup or delivery available.
Cordeck Metal Roof Deck Products
Cordeck Metal Roof Deck Specs
At-a-glance specs

Standard Cover Width

36"

Available Gauges

22, 20, 18

Available Finishes

Galvanized-G60/G90, Prime Painted–Gray or White

Compliance

SDI · UL · FM Approved

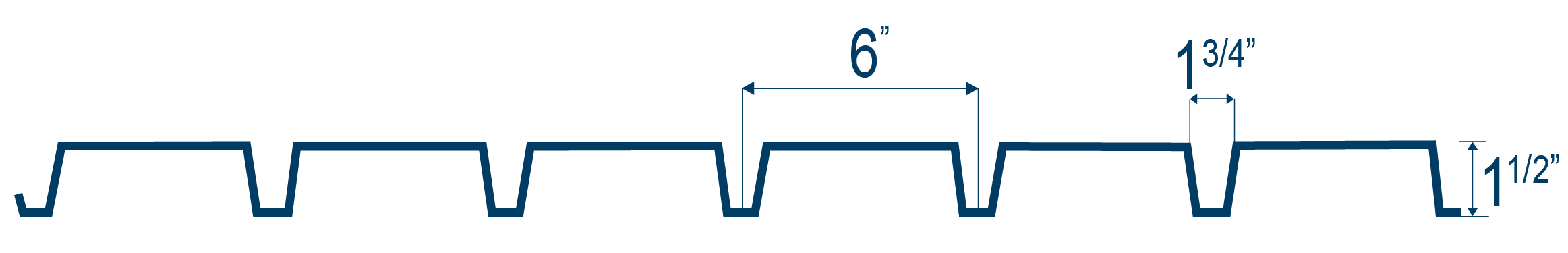

F Deck (Type F, Intermediate Rib, 1.5 IR) is the middle profile in the 1.5″ roof deck family, with a rib width between narrow-rib A and wide-rib B. It carries the roof on commercial and industrial steel-framed buildings, laid over the structural steel as the base for insulation, weatherproofing, and roofing. All three gauges are manufactured by Cordeck, with same-day or next-day pickup or delivery available, and cut-to-length sizing is offered on request.

Quick Quote

Reply in under 1 business hr

Not sure exactly what you need? Send the basics and our team follows up fast. Know exactly what you need? Use our detailed quote form.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Gauge
(optional)
(optional)
sheets, optional
optional

Prefer to talk it through? Give us a call 877.857.6400

Same-day pickup

From any of our 8 locations

Same-day or next-day pickup or delivery available

Fast delivery

Coast to coast, all 50 states

Excellent service

Family-business attention to every order

Need it tomorrow? Call 877.857.6400

Applications & use cases

Where 1.5″ F Intermediate Rib Roof Deck Shows Up

Specified as the roof substrate on commercial and industrial steel-framed buildings — small to mid-size commercial roofs, office parks, medical clinics, and auto dealerships. It's also chosen for mezzanines, canopies, and exposed open-ceiling designs, from entry canopies and storage mezzanines to restaurant and brewery taprooms.

Primary Applications

Structural roof substrate for commercial/industrial steel-framed buildings

Installed directly over structural steel to provide a solid work surface for insulation, weatherproofing, and roofing materials

Common Examples
  • Small to mid-size commercial roofs
  • Office park buildings
  • Medical clinics
  • Auto dealership roofs
Secondary Applications

Mezzanine and canopy construction

Exposed corrugated underside for open ceiling design

Common Examples
  • Entry canopy at a car dealership
  • Open ceiling in a trendy restaurant or brewery taproom
  • Storage mezzanine in a light commercial building
Engineering data

Load Tables & Section Properties

SDI-compliant uniform load values and section properties. Download the full data sheet or review the tables below.

Uniform Load Table

Cordeck 1.5 F Roof Deck Uniform Load Table

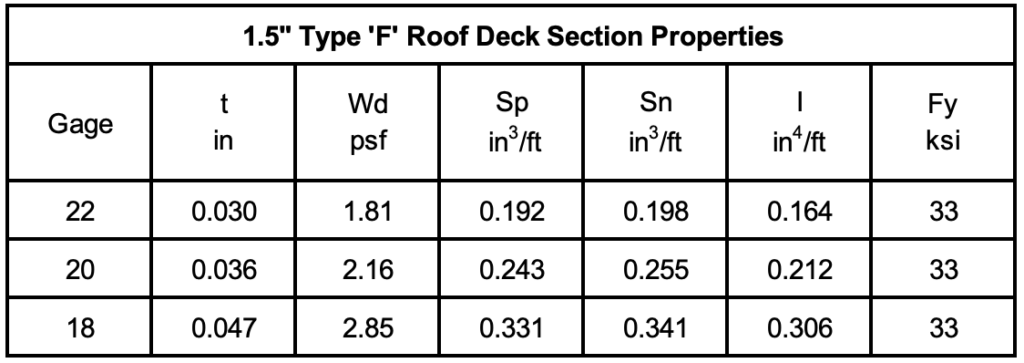

Section Properties

Product Information

Specifications & Documentation

  1. Cordeck certifies that our Roof Deck has been evaluated in accordance with the applicable SDI Standards and property values for the Uniform Load Tables and meets or exceeds SDI requirements.
  2. Load shown in tables is uniformly distributed total (dead plus live) load in psf (kPa). Loads in shaded areas are governed by live load deflection not in excess of L/240, the dead load included in 10 psf (0.478.kPa). All loads are governed by the allowable flexural stress limit of 20 ksi (140 Mpa) maximum yield steel. Where heavy construction loads or other unusual concentrated loads are anticipated during the lifetime of the deck, the specified live load must be increased to offset the effects of the abnormal concentrated load. See Maximum Spans for Construction and Maintenance Loads in the SDI Design Manual.
  3. The rib width limitations shown are taken at the theoretical intersection points of the flange and web projections. Depending on the radius used, the load table could vary from that shown.

All steel to be used in Cordeck Roof Deck will be galvanized, prime painted, or a combination of the two.

  1. Prime Painted
    • Roof deck shall receive one coat of standard gray primer paint over cleaned and pretreated steel.
    • The primer coat is intended to protect the steel for only a reasonably short period of exposure, in normal atmospheric conditions, and shall be considered an impermanent and provisional coating.
    • Field painting of prime painted material is recommended especially where the deck is exposed.
  2. Galvanized
    • All steel shall be coated to conform to ASTM A924 G-60 or G-90 or to Federal Specification QQ-S-775.
    • Galvanized finish in G-90 coating is desirable in high moisture atmospheric conditions.
    • Cordeck shall not be responsible for the cleaning of the underside of steel deck to ensure bond of fireproofing. Adherence of fireproofing material is dependent on many variables. The adhesion ability of fireproofing materials is the responsibility of the fireproofing applicator.
  3. Accessories
    • Cordeck can supply ridge and valley plates, cant strips, finish strips, sump pans, end and side closures, pour stops, deck plate, rubber cell closures, screws, and other accessories needed to complete the project.

  1. All steel deck material is manufactured by SDI members or manufactured in accordance to SDI.
  2. Cordeck certifies that all material will be in accordance with the SDI Cellular Deck Manual specifications.
  3. Cordeck Roof Deck conforms to all applicable SDI Roof Deck Manual specifications.

  1. Cordeck Steel Roof Deck shall be installed by qualified and experienced workers.
  2. Roof deck installation drawings shall be submitted to the project architect and engineer for approval prior to the manufacture of materials.
  3. Steel roof deck shall be placed in accordance with approved erection drawings.
  4. End laps shall be a nominal 2” and positioned over supports.
  5. Position each deck unit on a supporting structural frame. Adjust to final position with accurately aligned side laps and ends bearing on supporting members. On joist framing, be sure the appropriate end laps occur over a top chord angle for proper anchorage.
  6. When one row is placed end to end, begin another, making alignment adjustment if necessary.
  7. Each deck unit shall be placed on supporting steel framework and adjusted steel framework and adjust.
  8. Cutting of openings through the deck and all skew cutting shall be performed in the field. Openings not shown on the erection drawings such as those required for stack, conduits, plumbing, vents, etc., shall be cut, and reinforced if necessary, by the trades requiring the openings.

  1. Roof deck sheets shall be attached as soon as possible after placement. All sheets placed shall be attached prior to the end of each work day. Arc welding is the most commonly used method for attaching Cordeck Steel Roof Deck to structural supports. Welder shall immediately follow the placement crew.
  2. All welds are to be made from the top of the deck down through the bottom flange of the ribs. Welds shall penetrate and attach all thickness of material to the structural supports.
  3. Caution shall be exercised on the selection of the electrodes to provide positive attachment and to prevent high amperage blow holes.
  4. Puddle welds shall be at least 5/8” diameter or elongated puddle welds with an equal perimeter. Fillet welds, when used, shall be at least 1” long.
    • Roof deck ends shall be welded to structural supports at 12” on center maximum and 18” on center maximum at intermediate supports.
    • Various mechanical fastening systems other than welding are recognized as viable anchoring methods provided that they are reviewed, approved, or specified by the project designer. These include but are not limited to power-activated or pneumatically driven fasteners and screws.
    • When spans exceed 5’-0”, side laps shall be fastened together at a maximum spacing of 36” on center.

Attachment must be determined by the designer as part of the overall building design process. Values given in this document are adequate in most cases.

  1. Protect steel deck from corrosion, deformation, and other damage during storage, handling, and installation.
  2. Deck not promptly erected shall be stored off the ground, with one end elevated to provide drainage. Bundles must be protected against condensation with a ventilated waterproof covering.
  3. Bundles must be stacked so there is no danger of shifting or material damage. Bundles must be checked for tightness, and retightened as necessary.
  4. Deck bundles on the building frame must always be placed near a main supporting beam, at a column, or a wall. In no situation are the bundles to be placed on unbolted frames or unattached and unbridged joists. The structural frame must be properly braced to receive the bundles.

Features & benefits

Why Contractors Choose Cordeck

Project management and engineering services are offered by Cordeck’s full, expert, in-house engineering and detailing services to assure optimal planing and design. Our experienced engineers and technicians provide individual customer service and attention to detail from concept to completion.

SDI Membership by the manufacturer guarantees product quality in accordance to the Steel Deck Institute (SDI).

AutoCAD® drawings can be transferred electronically for improved quality and reduced time and cost of drawing transmittal.

Bundle Placement plans are provided to ensure correct location of bundles during unloading and hoisting to steel framework.

On-spec, guaranteed quality. Our production staff are true craftsmen, not just interested in getting the job done, but in doing it perfectly.

Knowledgeable, courteous, caring employees throughout our ranks. We’re a “family business”…no “big corporate” attitude here! We genuinely appreciate our customers’ patronage and trust, handling every order, regardless of size, with utmost care and attention.
